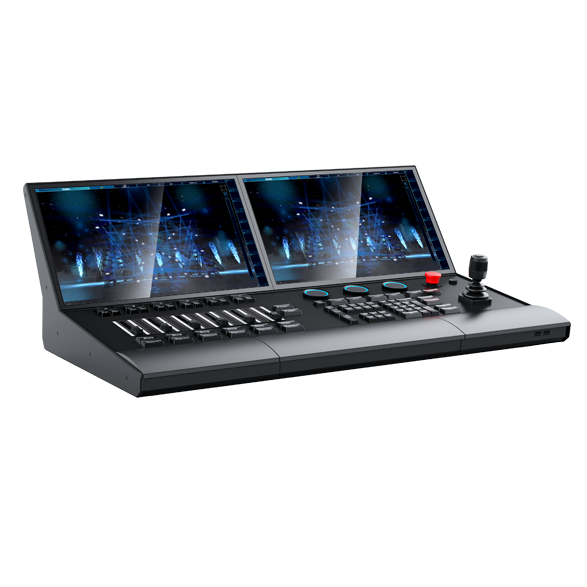

FINE DAX Hoistar

OVERVIEW

FINE DAX Hoistar is a multifunctional human-computer interaction stage mechanical console independently developed by FINE ART. Adopting Linux system architecture, Intel i5 processor, high-performance independent graphics card, dual 17.3-inch LCD touch screens, electric push rods with backlight and photoelectric encoder, application interaction is fast and smooth; DMP foot pedal, local emergency stop, built-in UPS, user Multiple software and hardware security guarantees such as permission setting, face recognition, operating parameter safety warning, closed-loop control, 3D visual monitoring of the motion status of all axes, etc.; supports 100M Ethernet and optical fiber communication, and can quickly send and receive control instructions and feedback information; tabular Programming, object-based programming, offline CUE programming, import of three-dimensional materials and CAD (3DS) format objects, 3D graphic control, visual offline operations, etc., making programming and control simple and easy to use; supports LTC time code triggering and DMX512 communication, supports Up to 999 channel groups and 999 CUE capacity. It is the best choice for stage machinery control in theaters, studios, shows, concerts and other places.

TECHNICAL SPECIFICATION

Details

User permission settings, face recognition unlocking
Local emergency stop, supports Class 0 and Class 1 emergency stop
DMP two-step foot pedal
Equipped with Intel i5 processor, equipped with wireless keyboard
Dual 17.3-inch LCD touch screens
Built-in power filter, and equipped with UPS function (5 minutes)
Supports 100M Ethernet and optical fiber communication
Supports DMX512 communication, lighting console can trigger console scenes

User permission settings, face recognition unlocking
Local emergency stop, supports Class 0 and Class 1 emergency stop
DMP two-step foot pedal
Equipped with Intel i5 processor, equipped with wireless keyboard
Dual 17.3-inch LCD touch screens
Built-in power filter, and equipped with UPS function (5 minutes)
Supports 100M Ethernet and optical fiber communication
Supports DMX512 communication, lighting console can trigger console scenes

Supports LTC time code, external time can trigger console scene operation
Tabular programming, object-based programming
Supports 3D visualization to monitor the motion status of all cables
Supports 3D graphical control, offline CUE programming and visual offline operation
Supports 999 channel groups and 999 CUE capacity
Supports 3D materials and CAD (3DS) format objects
Built-in high-definition camera
Can directly maintain drive equipment parameters, and can be equipped with parameter sets, supports batch download updates
6 backlit electric faders
3 backlit photoelectric encoders
Interface: 7 Ethernet interfaces, 2 DMX512 interfaces, 1 LTC interface, 2 MIDI interfaces, 5 USB extensions (2 in front, 3 in back), 1 DP interface, 1 DMP interface, 1 emergency stop button, 1 61-key mechanical disk, 2 gooseneck light interfaces

Supports LTC time code, external time can trigger console scene operation
Tabular programming, object-based programming
Supports 3D visualization to monitor the motion status of all cables
Supports 3D graphical control, offline CUE programming and visual offline operation
Supports 999 channel groups and 999 CUE capacity
Supports 3D materials and CAD (3DS) format objects
Built-in high-definition camera
Can directly maintain drive equipment parameters, and can be equipped with parameter sets, supports batch download updates
6 backlit electric faders
3 backlit photoelectric encoders
Interface: 7 Ethernet interfaces, 2 DMX512 interfaces, 1 LTC interface, 2 MIDI interfaces, 5 USB extensions (2 in front, 3 in back), 1 DP interface, 1 DMP interface, 1 emergency stop button, 1 61-key mechanical disk, 2 gooseneck light interfaces
