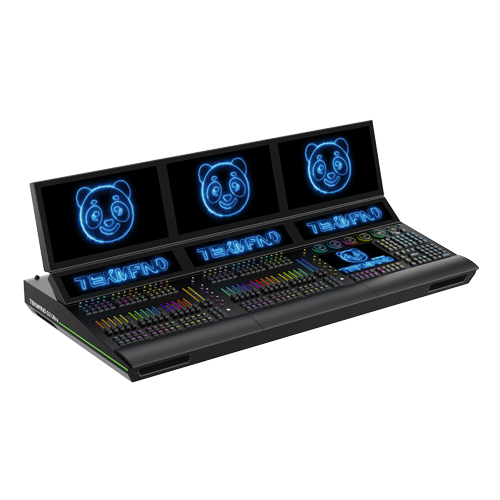

TEKMAND G3 ULTRA

OVERVIEW

TEKMAND G3 ULTRA is the third generation intelligent digital dimming console and has completely independent intellectual property rights. Adopting the ultimate hardware configuration and ultimate performance, it can easily cope with extremely large lighting systems. TEKMAND G3 ULTRA's new dual-system architecture, newly designed multi-screen application interaction, simple interface, rich graphics and text, and dual protection of software and hardware provide a safer and more reliable programming environment. Infrared, fingerprint scanner, dual cameras, dual-turn encoders, electric pushrods with scale backlight, voice recognition, remote assistant, AI programming and other new usages are added to experience different lighting programming and feel the charm brought by TEKMAND G3 .

TECHNICAL SPECIFICATION

Feature Information

Available to control max 260000+parameters when each session is connected to DPU
Console itself can process 24576 parameters
8 DMX input/output ports (XLR-5 pin/XLR-3 pin)
Built-in 3 motor-drive foldable 17.3" ultra HD multi-touch screens
Built-in 3x 15.0" multi-touch bar screens
Built-in 1 10.1" HD multi-touch command screen
Expandable to two external screens
5 large RGB backlit programmable dynamic touch encoder
2 medium RGB backlit programmable single circle encoder
40 small RGB backlit programmable encoder
1 master RGB backlit programmable encoder
1 dimming RGB backlit programmable encoder
30 RGB backlit programmable motorized faders with scale
4 long rectangular A/B/C/D RGB backlit programmable motorized faders with scale
120 RGB backlit programmable command buttons
20 RGB backlit programmable X keys
67+12 RGB backlit programmable function keys
Built-in storage drawer
Built-in UPS power supply
Built-in SIM card wireless module
Built-in dual IR, dual microphone modules
Built-in dual cameras (front+rear)
Built-in backlit secure fingerprint scanner

Available to control max 260000+parameters when each session is connected to DPU
Console itself can process 24576 parameters
8 DMX input/output ports (XLR-5 pin/XLR-3 pin)
Built-in 3 motor-drive foldable 17.3" ultra HD multi-touch screens
Built-in 3x 15.0" multi-touch bar screens
Built-in 1 10.1" HD multi-touch command screen
Expandable to two external screens
5 large RGB backlit programmable dynamic touch encoder
2 medium RGB backlit programmable single circle encoder
40 small RGB backlit programmable encoder
1 master RGB backlit programmable encoder
1 dimming RGB backlit programmable encoder
30 RGB backlit programmable motorized faders with scale
4 long rectangular A/B/C/D RGB backlit programmable motorized faders with scale
120 RGB backlit programmable command buttons
20 RGB backlit programmable X keys
67+12 RGB backlit programmable function keys
Built-in storage drawer
Built-in UPS power supply
Built-in SIM card wireless module
Built-in dual IR, dual microphone modules
Built-in dual cameras (front+rear)
Built-in backlit secure fingerprint scanner

Stable and reliable main operating system: LINUX
Multiple operating languages (Simplified Chinese, English, Traditional Chinese, Japanese, Korean, Russian, French…)
Multiple input methods (Chinese, English, Korean, Graffiti, Voice…)
Newly designed with multiple themes, richly illustrated interface, gesture control, voice control, AI and other user interactions
Multi-console online real-time backup
New desktop remote control APP
3D stage simulation effect, offline programming
Built-in media player, video/audio playback with synchronization
Supports CITP remote media server communication
Supports RDM remote lighting management
Supports multiple network protocols: TEKMAND-Net, ArtNet, sACN, ShowNet
Supports PSN remote positioning service protocol
3 Ethernet ports(10/100/1000M)
3 + 2 high speed USB ports
2 DP high definition display interfaces
MIDI input port (5-pin female connector)
MIDI output port (5-pin female connector)
LTC linear time code input interface (3-pin XLR female connector)
Audio input port (3-pin XLR female connector)
Audio output port (3.5mm)
S / PDIF audio input and output ports
2 gooseneck light ports (4-pin XLR female connector)

Stable and reliable main operating system: LINUX
Multiple operating languages (Simplified Chinese, English, Traditional Chinese, Japanese, Korean, Russian, French…)
Multiple input methods (Chinese, English, Korean, Graffiti, Voice…)
Newly designed with multiple themes, richly illustrated interface, gesture control, voice control, AI and other user interactions
Multi-console online real-time backup
New desktop remote control APP
3D stage simulation effect, offline programming
Built-in media player, video/audio playback with synchronization
Supports CITP remote media server communication
Supports RDM remote lighting management
Supports multiple network protocols: TEKMAND-Net, ArtNet, sACN, ShowNet
Supports PSN remote positioning service protocol
3 Ethernet ports(10/100/1000M)
3 + 2 high speed USB ports
2 DP high definition display interfaces
MIDI input port (5-pin female connector)
MIDI output port (5-pin female connector)
LTC linear time code input interface (3-pin XLR female connector)
Audio input port (3-pin XLR female connector)
Audio output port (3.5mm)
S / PDIF audio input and output ports
2 gooseneck light ports (4-pin XLR female connector)

TECHNICAL SPECIFICATIONS

Input voltage: 100-240V~ 50/60Hz
Maximum power: 230 W
Power factor: ≥0.95
Product dimensions: 1357 x 637 x 461mm (screen raised) 1357 x 740 x 180mm (screen folded)
Net weight: 48 kg
Packaging method: 1 pc / flightcase
IP rate: IP 20
working temperature: -10℃～40℃
Accessory Items
Dust cover
Gooseneck light
User Manual
Capacitive touch pen (optional)

Input voltage: 100-240V~ 50/60Hz
Maximum power: 230 W
Power factor: ≥0.95
Product dimensions: 1357 x 637 x 461mm (screen raised) 1357 x 740 x 180mm (screen folded)
Net weight: 48 kg
Packaging method: 1 pc / flightcase
IP rate: IP 20
working temperature: -10℃～40℃
Accessory Items
Dust cover
Gooseneck light
User Manual
Capacitive touch pen (optional)
